- Interconnects Connectors Board To Board connectors
-
-
LBTB-05MAxxxxx+LBTB-05FAxxxxx

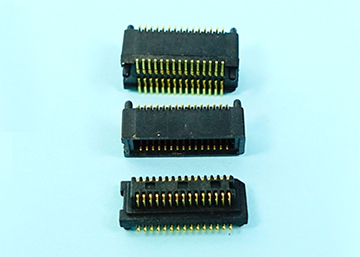

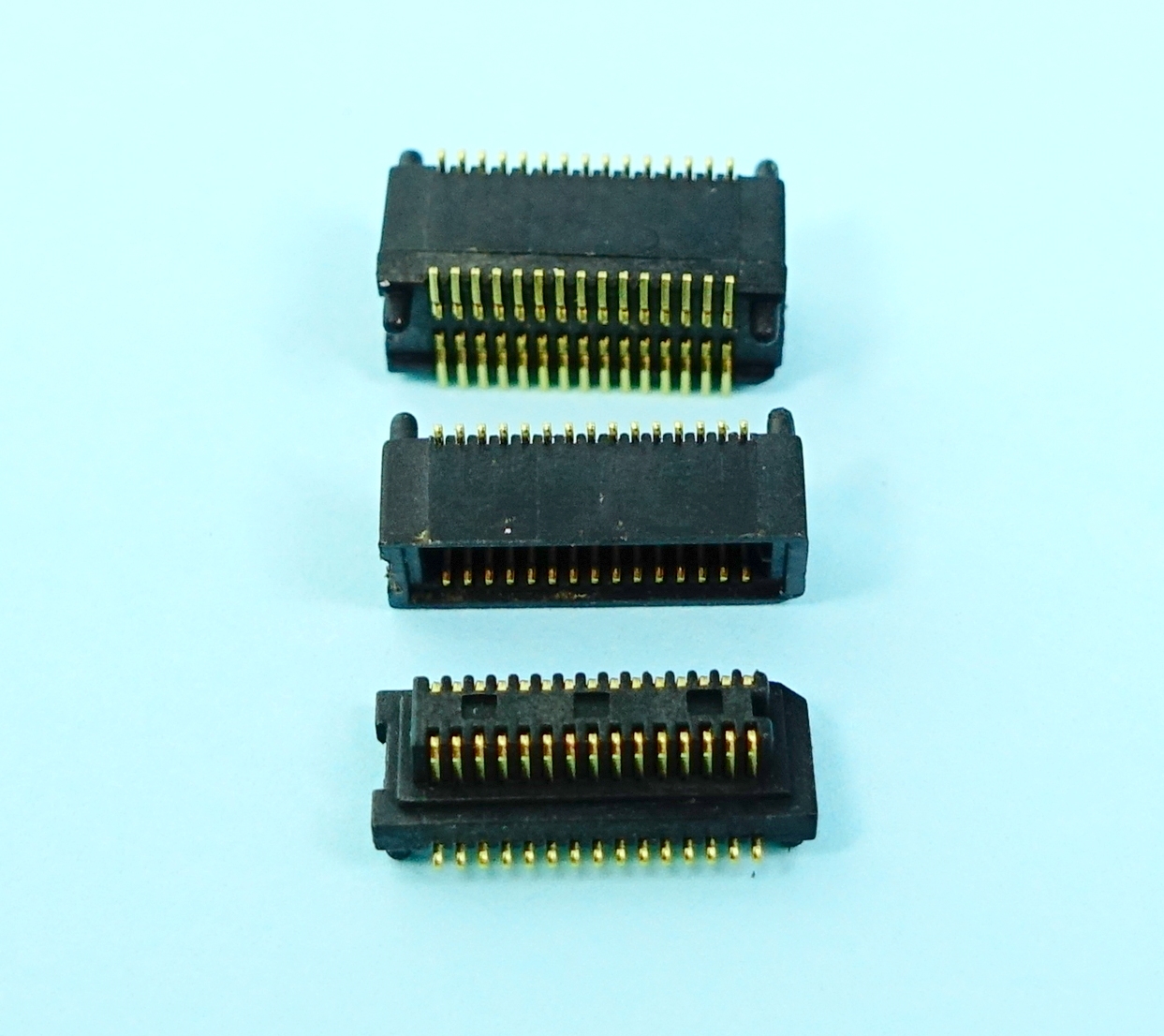

0.50mm(0.0197") Pitch Board To Board Connector SMT Type Male+Female H=3.50mm,Pegs
Description
Specifications
Material
- Housing: Nylon-9T Halogen Free, UL94V-0, Black
- Contact : Copper Alloy.
- Plating : Gold Plating.
Temperature:-55 to +125°
Electrical
- Voltage: 50V.
- Current: 0.5A.
- Contact Resistance : 40m Ω max.
- Dielectric Withstanding Voltage: 500V AC / 1 min.
- Insulation Resistance: 100M Ω min.
Available Pins : 20~100 Contacts
