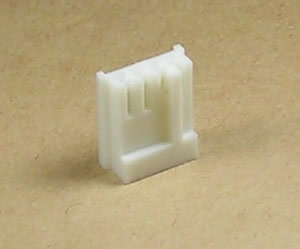

  • 2480 SERIES CENTER CRIMP TERMINAL HOUSING

2480 Series
FEATURES:

* 4 Circuits
* Nylon, [UL 94V-0]
* 2480 Series with locking ramp
* 2480 Series mates mith .025"[0.64mm] pins accepts
double cantilever crimp terminal [2480-T]
* 2490 Series Friction lock
* 2490 Series .025"[0.64mm] right angle or
straight square wire pins
* 2490 Series mates with 2480 housing
SPECIFICATIONS:
* Current rating: 3A AC. DC
* Voltage rating: 250V AC. Maximum
* Temperature range: -40°C ~ +105°C
* Contact resistance: Initial Value/10mΩ max.
                                        After environmental testing
                                        /20mΩ max.
* Insulation resistance: 5000 MΩ min
* Withstand voltage: 1500V AC/minute
* Applicable PC board thickness: .063"[1.6mm]
