  • CW325 - 0.098
  • CW325

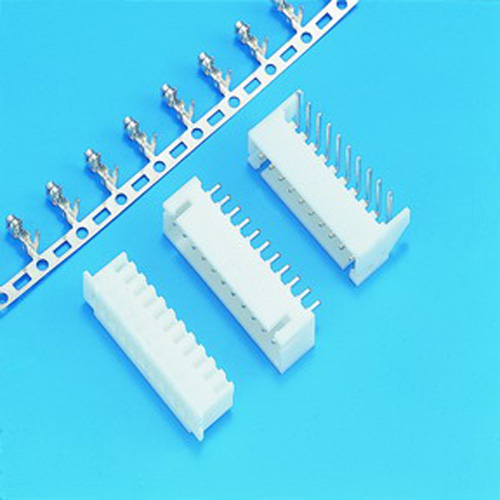

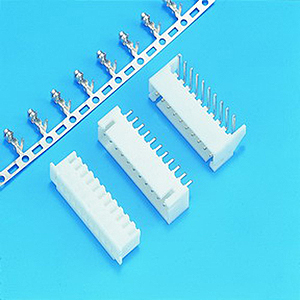

    0.098"(2.50mm)Pitch Single Row Headers - Wafer Connector

CW325 Series
* Ploes :
2 ~ 20
* Material : Insulator : NYLON UL 94V-2
* Contact : 0.64mm(.025") Square Pin,Brass,
  Tin Plated 60u"
* Mates With CH325 Series Housing
Specifications
* Current Rating : 3A AC, DC
* Voltage Rating : 250V AC, DC
* Temperature Range : -25℃ ~ +85℃
* Insulatipn Resistance : 1,000MΩ Min.
* Withstand Voltage : 1,000 AC / Minute
* Applicable PC  Board Thickness :  .063"(1.6mm)

Supplier Information

Chien Shern Enterprise Co., Ltd.

TEL : 886-2-22839012 FAX : 886-2-22881063
3F, No. 1, Lane 114, Ho Ping Rd., Lu Chou Dist, New Taipei City, Taiwan.
Web-Site : http://www.chienshern.com.tw
E-Mail : chs.connect@msa.hinet.net
