  • W330 - 0.100
  • W330

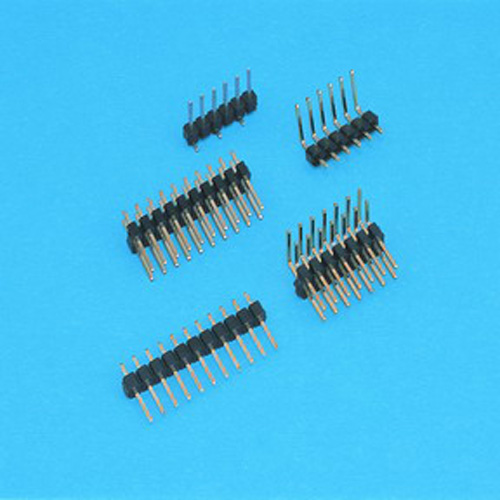

    0.100"(2.54mm) Pitch Double Row - Board to Board Connector

W330 Series
※
Poles: 4-80
※
Material: Insulator: PBT UL 94V-1 Black
※ Contact: 0.64mm(0.25") square pin, brass,
    gold plated Gold Flash
※
Mates with CH330 CH2545 series housing
Specifications
※
Current rating: 3A AC, DC
※
Voltage rating: 250V AC, DC
※
Temperature range: -25℃ ~ +85℃
※
Insulation resistance: 1,000MΩ min.

Withstand voltage: 500 AC/minute

Applicable PC board
    thickness: 0.063" (1.6mm)
 Unspecified tolerance: ±0.25

Supplier Information

Chien Shern Enterprise Co., Ltd.

TEL : 886-2-22839012 FAX : 886-2-22881063
3F, No. 1, Lane 114, Ho Ping Rd., Lu Chou Dist, New Taipei City, Taiwan.
Web-Site : http://www.chienshern.com.tw
E-Mail : chs.connect@msa.hinet.net
