  • W328 - 0.100
  • W328

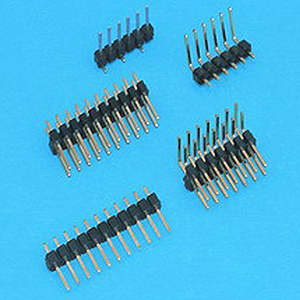

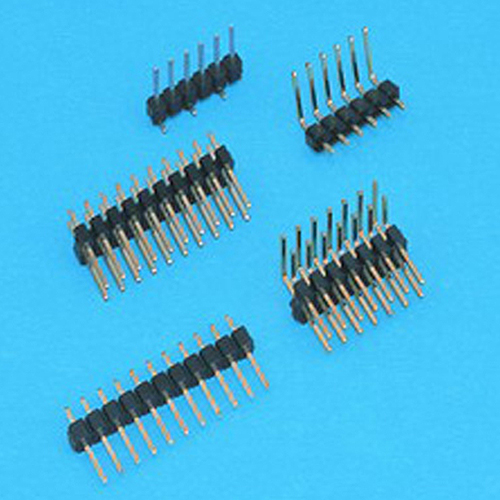

    0.100"(2.54mm) Pitch Single Row - Board to Board Connector

W328 Series
 ※
Poles: 2-40

※
Material: Insulator: PBTP UL 94V-1 Black
 ※
Contact: 0.50mm(0.25") square pin, brass, gold
     plated Gold Flash

※ Mates with CH328 series housing

Specifications

※ Current rating: 3A AC, DC

※
Voltage rating: 250V AC, DC

※
Temperature range: -25℃ ~ +85℃

※
Insulation resistance: 1,000MΩ min.


Withstand voltage: 500V AC/minute
  Applicable PC board thickness: 0.063" (1.6mm)
  Unspecified tolerance: ±0.25
