  • LDVI29-3V4S1X22141N0 - DVI-I Connector  Right Angle DIP 29P  Socket - LAI HENG TECHNOLOGY LTD.
  • LDVI29-3V4S1X22141N0

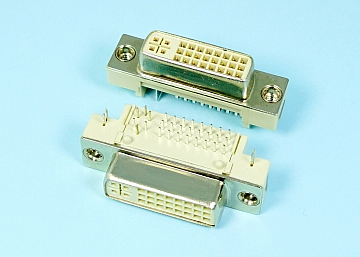

    DVI-I Connector Right Angle DIP 29P Socket

Specifications

  • DVI-I
  • Voltage: 40 VAC(RMS) Max.
  • Current Rating: 1.5 Ampere per Contact
  • Contact Resistance: 20 Milliohms Max.
  • Insulation Resistance: 1000 Megohms Min.
  • Dielectric Withstanding Voltage: 500V DC(RMS)
  • Total Mating Force: 4.5 kgf Max.
  • Total Unmating Force: 1.0 Kgf Min.
  • Operating Temperature: -55°C to +85°C


Material

  • Housing:PBT, UL 94V-0, Color:Ivory.
  • Latch:PA66, UL 94V-0, Color:Ivory.
  • Terminal:Copper Alloy.
  • Shell:SPCC.
  • Boardlock:Steel.
  • Rivet:Copper Alloy


Finish

  • Terminal:Selected Gold Plated in Contact Area, 100u" MIN. Tin Plated in Solder Area, 30u" MIN. Nickel Underplated Overall.
  • Shell:Nickel Plated 80u" MIN, Over Cu 50u” MIN.
  • Boardlock:Tin Plated 100u" MIN, Over Nickel 30" MIN.
  • Rivet:Nickel Plated 60" MIN, Overall.
