  • TC-750LC - Professional Moving Magnet Phono Pre-Amplifier w/level control - Technolink Enterprise Co.

  • TC-750LC

    Professional Moving Magnet Phono Pre-Amplifier w/level control


Description

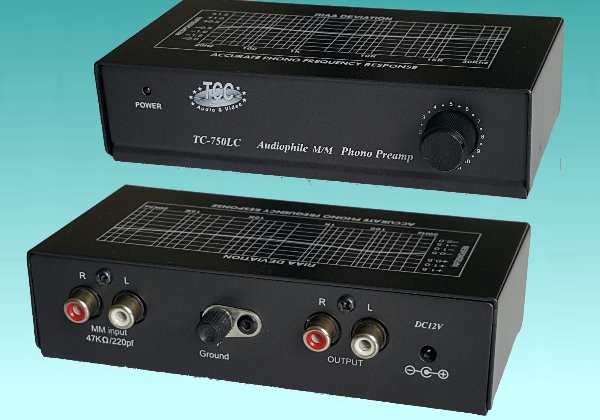

The TC-750LC professional moving magnet RIAA phono preamplifier is perfect for connecting a turntable to a hi-fi or home theatre system that has no phono input, or for adding a second turntable to a system that has only one phono input. It can also be used with the line input on any computer sound card to allow phono playback thru PC multimedia systems, as well as MP3, wave or CD-R/DVD-R ripping of record albums so they can be added to your mobile portable music collection.

TC-750LC features extremely accurate RIAA record compensation as well as very low THM, TIM, audio distortion, and superior S/N.
You will be pleasantly surprised with the extremely high audio reproduction quality from this preamp at a fraction of the price charged for similar products from other well known manufacturers.


　




Features:

Excellent stereo separation.
 Adjustable gain output to match input sensitivity or recording requirements.
 Input and output via gold-plated RCA connectors
Powered by an external AC/DC power adapter insuring minimal power supply hum.
 Quality OFC gold plated RCA cable included
 All-steel case construction with LED power indicator, ground wire terminal


Specification:

nput impedance:

 47k ohms/220pf

RIAA deviation response:

 +/- 0.5db, 20hz-20KHz

THD:

 Less than 0.05%

Input sensitivity:

 3.4mV/47k ohms/220pF

Input overload margin:

 20 dB

Normal output

 300mV

Maximum output:

1.8V (Adjustable)

Signal/noise ratio:

>85 dBA

Output impedance:

 1K ohms

Cross-talk

 >6-dB, at any audio frequency

Output adjustability

 Over 85dB

Dimension

 142mm (L) X 80mm (W) X 39mm

　

Package

Weight

Export carton

N.W

G.W

Dimension

Giftbox

752gm

15 pcs

15kgs

16.5kgs

1.6'

　
