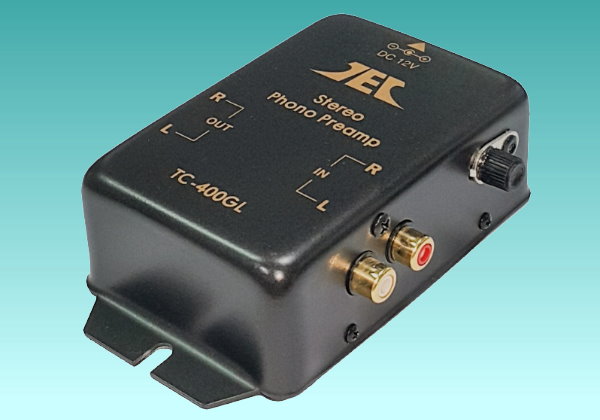

TC-400GL is a high quality DC powered moving magnet RIAA phono preamplifier designed for the accurate reproduction of vinyl tracks.

Connect TC-400GL between a moving magnet cartridge turntable and the line input of amplifier or a mini shelf system that was designed
for ceramic or crystal cartridge only.

The compact strong metal case provides excellent isolation against hum and noise, plus the outstanding  features make this entry level
mini phono preamp is perfect choice for use with PC sound card and home Hi-FI system.

Features:

For use with moving magnet cartridges Suitable for home or professional applications Use with any receiver or amplifier which lacks a phono input Discrete circuitry design (no ICs) Accurate RIAA equalization Ground wire terminal Steel metal housing for optimum shielding and hum rejection.

Specifications:

Input impedance :	47K ohm, 220pF
Output impedance:	1K Ohm
RIAA Response:	20Hz-20Khz
S/N ratio:	Better than 78dB
Gain:	40dB
Nominal input sensitivity:	3mV/1Khz
