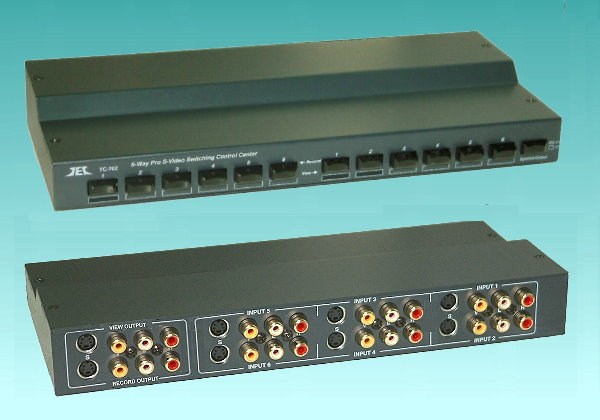

  • TC-762 - 6-Way Professional S-VIDEO Control Center - Technolink Enterprise Co.

  • TC-762

    6-Way Professional S-VIDEO Control Center


Description

TC-762 is a state-of-the-art passive designed audio/video distribution switcher designed for demanding applications.

This compact design accepts either six S-video or six composite video A/V inputs, any of which can be routed to either or
both of two independent outputs. The outputs can drive TVs, monitors, Plasma screens or video recorders without video
picture degradation or interference between the two outputs.





Features:

․Accepts up to six A/V sources.
․Passive design, no power required.
․User-friendly design; easy and safe to use.
․"Sync" switch allows the same input to feed both outputs when required.
․Gold-plated input/output connectors.
․Sturdy, stylish metal cabinet.
․Compatible with PAL, SECAM and NTSC video signals.
․Dimension: 292mm (L) x 145mm (W) x 39mm (H)

　

Technical information:
The TC-762 outputs are normally independent of each other, thus making it possible to view and
record  two different inputs simultaneously. View and record mode selection is made with push
switches on the front panel.

The VIEW switch-bar controls what is fed to "VIEW OUTPUT"; the RECORD switch-bar controls
"RECORD OUTPUT ".  Pressing the "Sync" button causes the source selected by the RECORD
switch-bar to be sent to both outputs for viewing and recording. When the "Sync" switch is on,
the VIEW switch-bar is bypassed.

　

Packing

Weight

pcs/carton

N.W

G.W

Dimension

Gift box

1178 gm

12pcs

14.5kg

16kg

2.2'

Supplier Information

Technolink Enterprise Co.

TEL : 886-2-2809-5832 (Rep) FAX : 886-2-2809-5836
7F., No. 69-7, Sec. 2, Zhongzheng E. Rd., Tamsui Dist, New Taipei city 251402, Taiwan
Web-Site : http://www.technolink.com.tw
E-Mail : tcc10140@ms2.hinet.net
