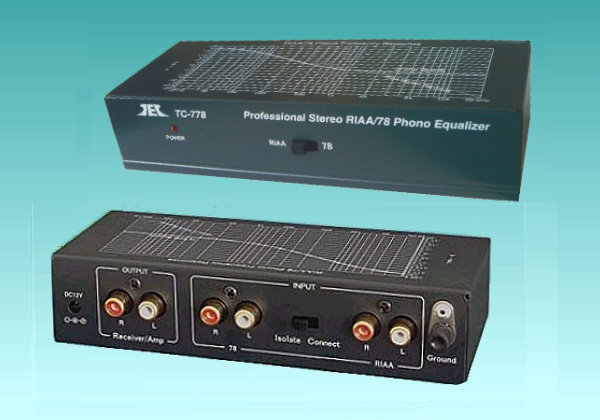

The TC-778 is a phono preamplifier for moving magnet cartridges which facilitates
the connection of either one 33/78 turntable, or of a separate 33 turntable and
78 turntable to an existing audio amplifier, PC sound card, or CD recorder.

The TC-778 can be used to boost the output of almost any phonograph turntable
equipped with a magnetic pickup. It is a high quality device having low audio
distortion, wide frequency response and low noise. It also has phonograph record
equalization for either modern RIAA records or for early 78 RPM records.

The TC-778 combines the proven low noise discrete RIAA design found in the TC-750
with the ability to select equalization much more appropriate for playing and
recording 78rpm records. Dedicated rear input jacks accommodate a separate 78
table; or the same input can be used for both RIAA and 78 (for those of you who
have one table capable of playing all record speeds). Simply set the rear panel
switch to the position which suits your situation

 　



Feature:

․Accepts standard moving magnet cartridges. ․Accurate phono equalization for either modern RIAA records or old 78 RPM records. ․Can accommodate single turntables or separate 33 and 78 turntables. ․Gold plated input and output connectors for reliable performance. ․Stylish, solid metal case for improved resistance to electrical noise.

Specifications:

․Frequency Response:	20 – 20 kHz, +/- 0.5 dB
․Audio Distortion:	0.06% Max.
․Input Sensitivity:	3.3 mV
․Input Impedance	47 kOhms @ 200 pF
․Output Impedance	600 Ohms
․Input Overload Margin	20 dB any input
․Crosstalk:	40 dB, Phono, at any audio frequency
․Signal To Noise Ratio:	>85 dBA
․Dimension	170mm (L) x 75mm (W) x 38mm (H)

　

　

Package	Weight	Export carton	N.W	G.W	Dimension
Gift box	820 gm	20 pcs	16.5 kgs	18 kgs	2.2'
