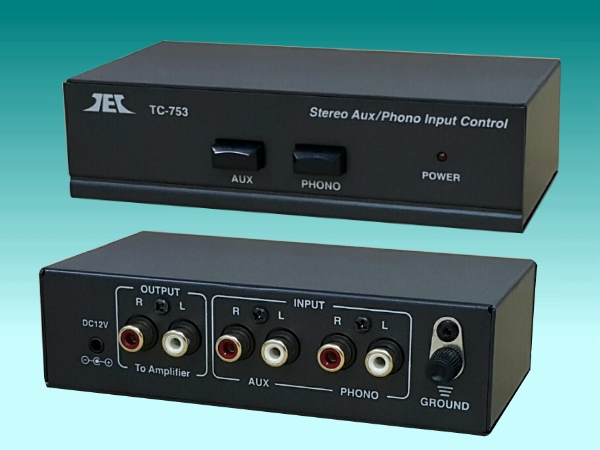

This compact stereo audio control unit is designed to accept and switch alternately between an
Aux and Phono input to make it possible to share one RCA pair of Aux input sockets on an AV
system. simply press the desired knob to select the appropriate device.

The built-in Phono preamp allows you to connect this unit between a M/M (Moving magnet)
Cartridge Turntable player and the Aux (Line) input of any Audio Video system. It is also
ossible to connect this unit to the line input of a PC soundcard, thus offering the possibility
to transfer vinyl records or audio cassette tapes onto a PC hard disk or CD-R. The Aux input
allows you to connect a CD player, Tuner, TV, DVD, VCR etc to the AUX or LINE input of an
AV system.

The metal housing offers secure screening against external interference that could otherwise
distort the delicate phono signals. The gold plated RCA sockets ensure optimum signal transfer
between the various connected equipment.

Features:
 Accepts either Aux or phono
 High gain low loss design
 Input/output through gold plated RCA socket
 With ground terminal

Specification
  Phono Input: 3mv/47K ohm/1 kHz
  Aux input: 150mV/47K
  Output: 300mv/1 k ohms/1 kHz
  Signal To Noise Ratio: >50db
  Audio Distortion: 0.06% Ma
  Frequency Response: 20 - 20 kHz, +/- 0.5 dB
  Power: DC12V 200ma (Included)
  Dimension: 141mm (L)X 74mm (W) X 37mm (H)
