  • Cherng Weei Technology Corp. - logo

  • Cherng Weei Technology Corp.

  • Interconnects Connectors Pin headers
  • F201-SG_-D032-XX-H - 2.54 Female Header 180°雙排 - Cherng Weei Technology Corp.

  • F201-SG_-D032-XX-H

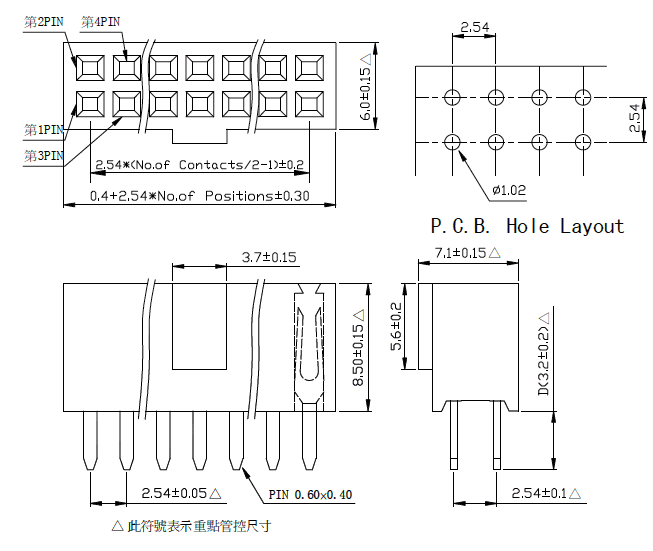

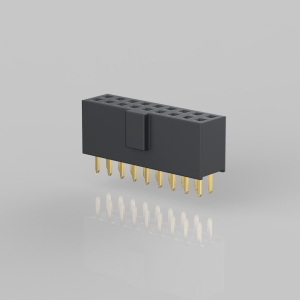

    2.54 Female Header 180°雙排


    PDF

Description

SPECIFICATIONS

  • Current rating: 3Amp
  • Insulator resistance: 5000 Megohms Min.
  • Contact resistance: 20 m ohms max.
  • Dielectric Withstanding: AC 1000 V
  • Operating Temperature: -40°C~+105°C
  • Contact Material: Brass
  • Insulator Material: Polyester, UL 94V-0
  • Finish: Tin, Gold or Duplex Plated
  • Standard: Gold Flash all over

Supplier Information

Cherng Weei Technology Corp.

TEL : 886-2-32346589 FAX : 886-2-32347647
6F, No. 490, Bannan Rd, Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.)
Web-Site : http://www.cwe.com.tw/
E-Mail : chergwei@ms29.hinet.net
