- Interconnects Plugs, Jacks & Sockets Connector terminals
-
-
KD-1142-XX
Disconnectable crimp style connectors (Pitch)： 2.54mm
Description
Specification
Voltage rating: 250V AC
Current rating: 3A AC/DC
Withstanding Voltage: 1000V / minute
Insulation resistance: 1000MΩ Min
Temperature range: -25℃ to +85℃
Contact resistance: Initial Vaule / 20m
max.
After environmental
testing/20m max
| Type | Type | Type |
| Housing | Wafer | Terminal |
| Part No. | Part No. | Part No. |

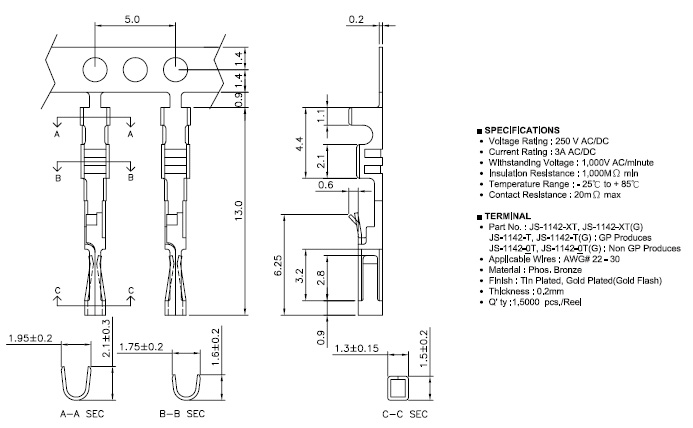

| JS-1142 | JS-1143(180° ) , JS-1143R(90° ) | JS-1142-T , JS-1142-T(G) |
| Description | Description | Description |
| Poles: 02 - 12 Material: PBT UL94V-0 Q'ty: 1,000 pcs/Bag |
Poles: 2 - 18 Material: Contact : Brass, Tin plated PBT UL 94V-0 Base : PBT UL94V-0 Q'ty: 1,000 pcs/Bag |
Applicable wires: AWG# 22~ 30 Material: Phos. bronze Finish:Tin plated , Gold plated
Thickness:0.2 mm
Q'ty: 15,000 pcs/Reel |
