Townes Enterprise Co.,Ltd

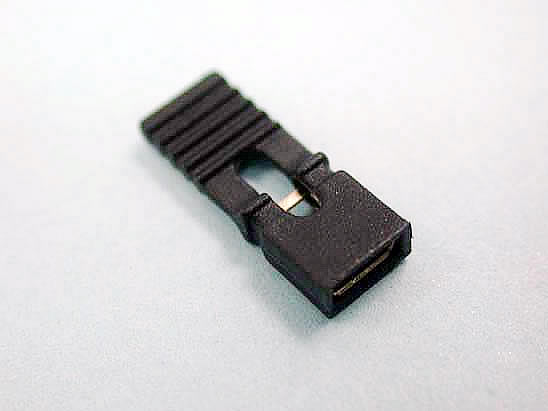

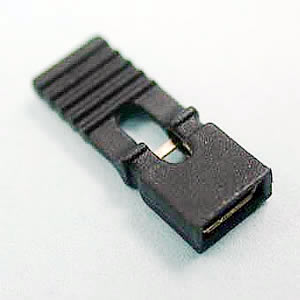

• MINI JUMPER SERIES
• 2.54mm PITCH OPEN&CLOSE TYPE


Specifications:

• Current Rating: 3.0 Amp
• Voltage Rating: 150V AC/DC
• Contact resistance: 20m Ohm Max
• Insulator resistance: 1,000M ohm min.
• Withstanding Voltage: 500V AC/Minute
• Operating Temperature Range: -40℃+105℃
• Material And Finish Insulator: Polyester(UL 94V-0)
• Standard: PBT+30% Glass Fiber
• Contact: Brass or Phosphor Bronze
• Contact Plated: Full Gold or Full Tin
