  • 3213-BSME-30UB - MINI USB B TYPE 5 PIN CONNECTOR SMT - Leamax Enterprise Co., Ltd.

  • 3213-BSME-30UB

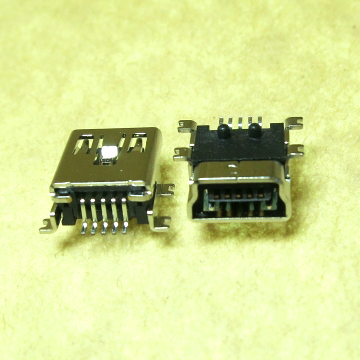

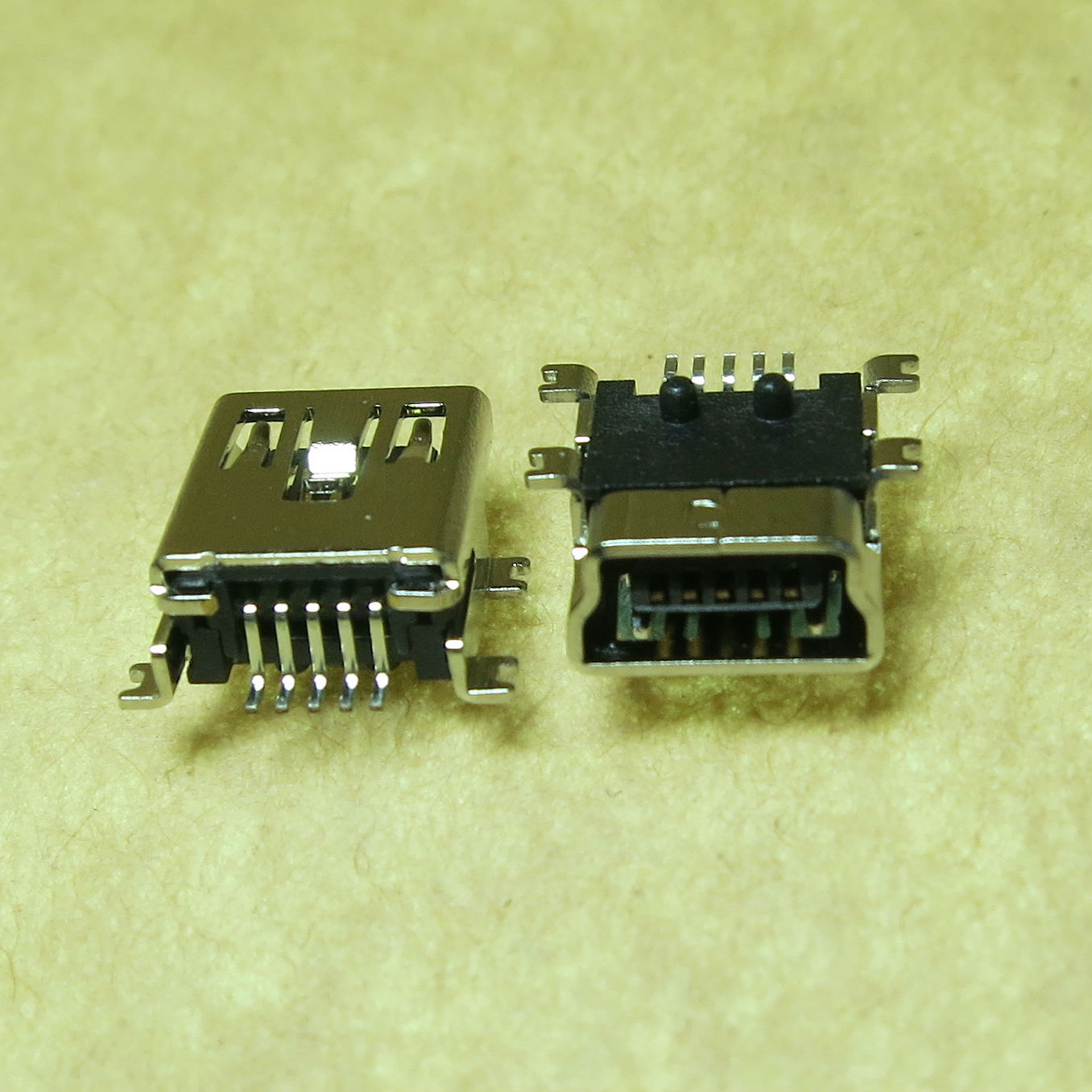

    MINI USB B TYPE 5 PIN CONNECTOR SMT


    3213-011

Description

Specifications

  • Contact Resistance: 50mΩ Max
  • Insulation Resistance: 100MΩ Min. At 500VDC.
  • Rated Voltage And Current: 1A At 30VAC Minimum.
  • Dielectric Withstanding Voltage: 100V AC for 1 Minute
  • Durability (Life Test): 1500 Cycles
  • Insertion Force: 35 Newtone Maximum.
  • Extraction Force: 7 Newtone Minimum.

Supplier Information

Leamax Enterprise Co., Ltd.

TEL : 886-2-8672-2518 FAX : 886-2-8672-3589
3F., No.20, Xueqin Rd., Sanxia Dist., New Taipei City 23741, Taiwan (R.O.C.)
Web-Site : http://www.leamax.com/
E-Mail : leamax@leamax.com
