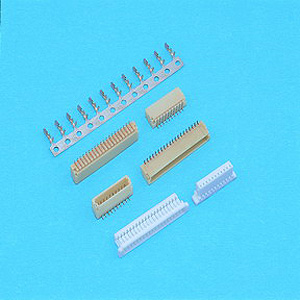

CW1001
0.039" (1.00mm) Pitch SMT Type - Pin Header
Description
CW1001 Series
※ Poles: 2-20
※ Material: Insulator: NYLON 6T UL94V-0
※ Contact: Phosphor bronze Matt Tin/Plated
※ Mates with CH1001 series housings
Specifications
※ Current rating: 1A AC, DC
※ Voltage rating: 50V AC, DC
※ Temperature range: -25℃~+85℃
※ Insulation resistance: 100MΩ min.
※ Withstand voltage: 500 AC/minute
