  • Chien Shern Enterprise Co Ltd - logo

  • Chien Shern Enterprise Co Ltd

  • Interconnects Connectors Power connectors

Description

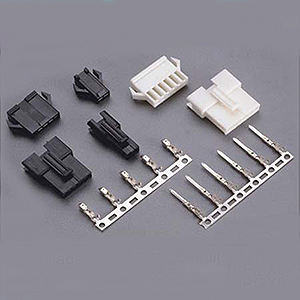

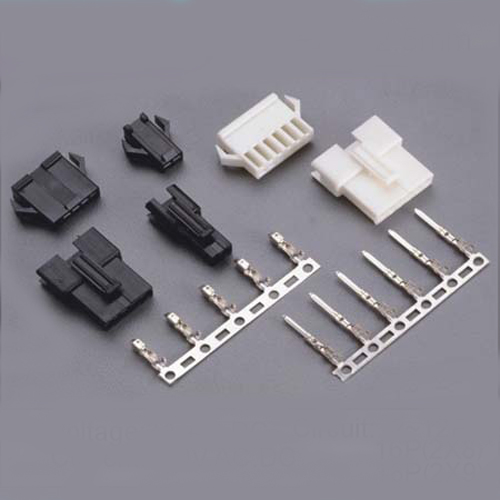

H6503 / T6503 Series

  • Poles: 2-12
  • Material: NYLON 66 UL 94V-2
  • Suitable T6503 series terminal
  • Mates with H6504 series

Specifications

  • Current rating: 3A AC, DC
  • Voltage rating: 250V AC, DC
  • Temperature range: -25℃~+85℃
  • Insulation resistance: 500MΩ
  • Withstand voltage: 1,000V AC/minute

Supplier Information

Chien Shern Enterprise Co Ltd

TEL : 886-2-22839012 FAX : 886-2-22881063
3F, No. 1, Lane 114, Ho Ping Rd., Lu Chou City, Taipei Hsien, Taiwan.
Web-Site : http://www.chienshern.com.tw
E-Mail : chs.connect@msa.hinet.net
