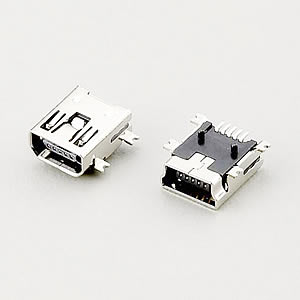

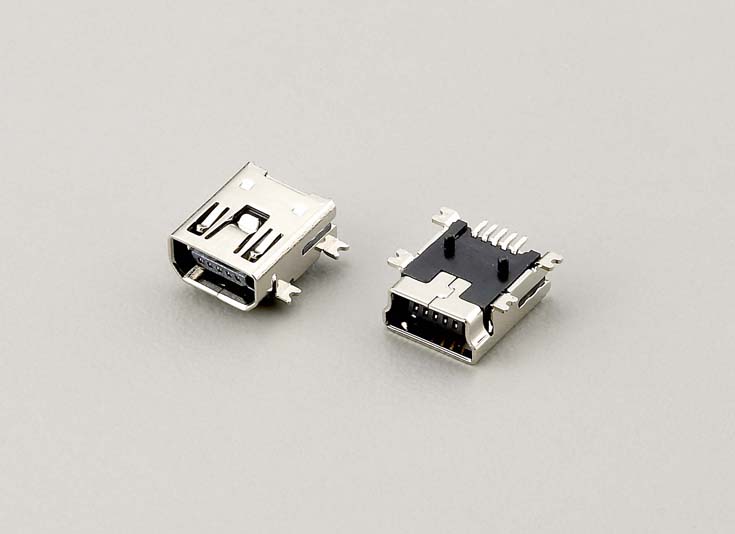

  • UBMI10C05xxEQx1 - Mini USB / AB / Female / SMT - Jaws Co., Ltd.

  • UBMI10C05xxEQx1

    Mini USB / AB / Female / SMT

    Product Brand / Mini USB


    UBMB

Description

Specifications:

Contacts : Phosphor Bronze
Insulator : LCP + 30% G.F. Ul 94v-0
Shell : Brass
Mating: 35n Max.
Withdrawal Force: 7n Min.
Durability : 5000 Cycles Min.
Contact-Max [Amps] : 1.0a
Voltage-Max [Volts] : 30v
Withstanding Voltage : 500v Ac
Contact Resistance [Ohms] : 50 MΩ Max.
Insulation Resistance [Ohms] : 1000 MΩ Min.
Contacts: See Order Information
Solder: 100u" Matte Tin Plated
Shell : Nickel Over All Plating
Temperature Range : -40°C ~ +105°C


Supplier Information

Jaws Co., Ltd.

TEL : 886-2-26922898 FAX : 886-2-26922618
7F, No.31, Lane 169, Kang Ning St., Hsichih, New Taipei City, Taiwan 221
Web-Site : http://www.jaws.com.tw/
E-Mail : sales@jaws.com.tw
